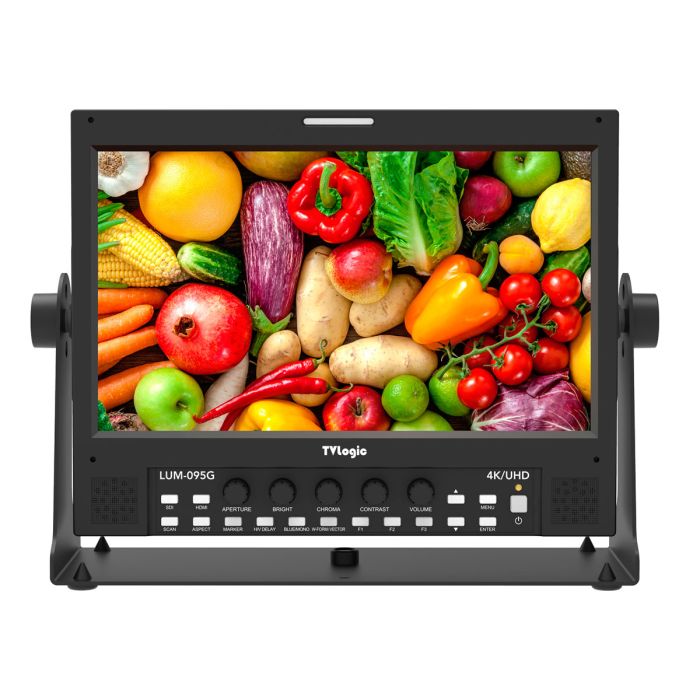

TV Logic LUM-095G Multi-Purpose Monitor

9” 4K/UHD Multi-Purpose Monitor

9″ 4K Input-Ready Monitor LCD Monitor with 9″ (1920×1080) IPS Panel 2x12G-SDI, 2x6G-SDI, 4x3G-SDI in/out. 1x HDMI 2.0 (4K 60p) input. Built-in 3D LUTs for Rec. 709/DCI-P3/Rec. 2020, HDR Emulation with HDR EOTFs of PQ, HLG and SLog3, Waveform/Vector Scope.

Part No:

LUM-095G

In Stock

£4,599.00 £3,832.50

Did you find this item priced lower than £3,832.50 somewhere else? Yes

Description

Features

9" FHD Panel + 4K Interface
12G-SDI Single Link 4K/UHD
3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
HDREmulation(PQ,HLG,S-Log3)
Custom 3D LUT Import by USB Flash Drive
Various Built-in Camera LUTs
Waveform/Vectorscope
16ch Audio Level Meter
Focus Assist
Marker
TimecodeDisplay
Dynamic UMD
Blue/MonoOnly
VariousAspect
Luma(Y’) Zone Check
Closed Caption (CC-608, CC-708)
H Flip & V Flip (Auto & Manual)

Specification

More Information
Specification	Size: 9"   Resolution: 1920 x 1080 (16:9) Pixel Pitch: 0.1035 x 0.1035 mm Colour Depth: 16.7M Colours (True 8 bit) Viewing Angle: 178 ̊(H)/178 ̊( V )  Luminance of white: 400nits Contrast Ratio: 750 : 1 Display Area: 198.72 x 111.78 mm Input SDI-A: 12G/6G/3G/HD-SDI Input SDI-B: 3G/HD/SD-SDI Input SDI-C: 3G/HD-SDI Input (For Quad-Link 4K/UHD Input only) or 12G/6G/3G/HD/SDI Output (Passive Through Out) SDI-D: 3G/HD-SDI Input (For Quad-Link 4K/UHD Input only) or 3G/HD/SD-SDI Output (Passive Through Out) 1xHDMI: HDMI(2.0) Input Input Signal 12G-SDI: 12Gb/s 6G-SDI: 6Gb/s 3G-SD: 2.970Gb/s HD-SDI: 1.485Gb/s SD-SDI:270Mbps HDMI: 2160p(60)/ 1080i(60)/720p(60)/480p(60)/576p(50) SDI Input Signal Formats SMPTE ST 2082: 2160p (60/59.94/50) SMPTE ST 2081: 2160p (30/29.97/25/24/23.98) SMPTE ST-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98 /30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50) SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF) SMPTE-296M: 720p(60/59.94/50)  SMPTE-260M: 1035i (60/59.94) SMPTE-125M: 480i (59.94)  ITU-R BT.656: 576i (50) Audio In: Embedded Audio, Analog Stereo(Phone Jack) Audio Out: Internal Speaker(Stereo), Analog Stereo(Phone Jack) Power: DC 12V / 24V Power Consumption (Approx.): 30 Watts(DC)/Max 2.6A Included Accessories: AC Power Cord, DC Power Adaptor, Carry Handle, Table Stand, Camera mount Main Body Dimensions Main Body: 223 x 175 x 60 (mm) / 8.78 x 6.89 x 2.36 (inch) With Stand: 260 x 194.2 x 90 (mm) / 10.24 x 7.65 x 3.54 (inch) Weight: 2.14Kg / 4.71lbs
