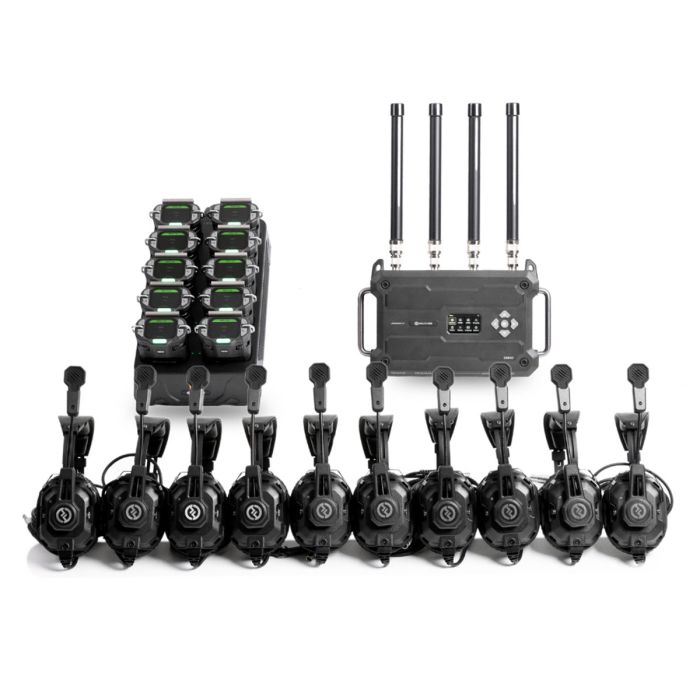

Hollyland Solidcom H1-10S 10-Person Noise Cancelling Headset Intercom

10-Person Noise Cancelling Headset Intercom Kit

The Hollyland Solidcom H1-10S 10-Person Noise Cancelling Headset Intercom is a professional-grade, license-free wireless intercom system. The system supports up to 12 groups and has been designed for seamless, reliable communication in various production environments, covering up to 500m in radius, line of sight.

Part No:
HOL-SC-H1-10S-KIT
Available to Pre Order
Call For Price

The Hollyland Solidcom H1-10S 10-Person Noise Cancelling Headset Intercom is a professional-grade, license-free wireless intercom system. The system supports up to 12 groups and has been designed for seamless, reliable communication in various production environments, covering up to 500m in radius, line of sight.

Solidcom H1 BPK01 Beltpack Key features include:

  • True Wireless: Built-in Bluetooth allows for integration with TWS earbuds and other Bluetooth headsets
  • Long-lasting Power: Beltpacks have a battery life of up to 15 hours
  • Lightweight Design: Beltpacks weigh under 305g (battery included), simply clip it to your waist or hang it around your neck — you’ll barely notice it’s there
  • User-Friendly Design: Customisable buttons and a simple setup process via a browser or the HOLLYVOX App
  • With 4 fully customisable buttons, the Solidcom beltpack BPK01 adapts to any workflow. Each button can be assigned as a talk key or call alert, and supports up to 4 stacked actions (total 16 audio channels, with GEO central station) — like talking to multiple channels, sending multiple call signals, or combining both in one press

Solidcom H1 ANT01 Key features include:

  • Wide Coverage: A single unit can provide a wireless range of up to 500 metres (LOS), with advanced roaming technology for extensive coverage
  • Connect the charging base to the Solidcom ANT01 to effortlessly pair beltpacks and deliver firmware or configuration updates in one go
  • Expansion through 2W/4W interfaces to connect additional Solidcom ANT01 or third party intercoms

Solidcom H1 Charging Dock Key features include:

  • For use with 10 beltpacks or batteries at once. Each battery is replaceable and provides over 15 hours of continuous use.
  • Connect the charging base to the Geo Central Station or Solidcom ANT01 to pair the beltpacks and deliver firmware and/or configuration updates to all beltpacks at once.

Solidcom H1 Single-Ear Headsets – HL Electret Mic ENC Single-Ear Headset

  • Lightweight single-ear headsets, with Environmental Noise Control (ENC)
  • Use your own headset with the 10 pin Lemo to 4 pin XLR adapter cable

This kit supports up to 20 beltpacks as a standalone system. With 3 x ANT01 you may support up 30 beltpacks (with roaming), without the GEO central station. Up to 80 beltpacks (with roaming), with a GEO central station for larger productions.

This system is ideal for professionals seeking a flexible, powerful, and easy-to-manage intercom solution.

  • 10 x Beltpack
  • ANT01 Antenna
  • 10 x Single Ear ENC Headset
  • 4pin XLR Headset Adapter cables
  • Charger
  • Carry Case
More Information
Specification

Solidcom H1 ANT01

  • LOS Range: 500m
  • Operating Frequency:
    • CE:
      • DECT: 1880 – 1900 MHz
      • BT: 2402 – 2480 MHz
      • WiFi: 2412 – 2472 MHz
    • FCC:
      • DECT: 1920 – 1930 MHz
      • BT: 2402 – 2480 MHz
      • WiFi: 2412 – 2472 MHz
  • Transmit Power:
    • CE:
      • DECT: ≤ 24 dBm
      • BT: ≤ 5.83 dBm
      • WiFi: ≤ 12.7 dBm
    • FCC:
      • DECT: ≤ 20 dBm
      • BT: ≤ 4.88 dBm
      • WiFi: ≤ 22.35 dBm
  • Bandwidth:
    • DECT: 1.728 MHz
    • BT: 1 MHz
    • WiFi: 20 MHz
  • Modulation Mode:
    • DECT: GFSK
    • BT: GFSK
    • WiFi: OFDM
  • Receiver Sensitivity: -90 dBm
  • Battery Life: /
  • Antenna Gain: 4dB
  • Power Consumption: 15.5W
  • PoE output Power: ≤ 45W
  • PoE Input Power: ≤ 60W
  • V/G Mount Battery Voltage Range: 11V – 30V
  • Dimensions: 302mm x 188.56mm x 64.6mm
  • Weight: 1987g
  • Operation Temperature: -10 – 45
  • Storage Temperature: -20 – 60

Solidcom H1 BPK01

  • LOS Range: 500m
  • Operating Frequency:
    • CE:
      • DECT: 1880 – 1900 MHz
      • BT: 2402 – 2480 MHz
    • FCC:
      • DECT: 1920 – 1930 MHz
      • BT: 2402 – 2480 MHz
  • Transmit Power:
    • CE:
      • DECT: ≤ 24 dBm
      • BT: ≤ 5.92 dBm
    • FCC:
      • DECT: ≤ 20 dBm
      • BT: ≤ 7.32 dBm
  • Bandwidth:
    • DECT: 1.728 MHz
    • BT: 1 MHz
  • Modulation Mode:
    • DECT: GFSK
    • BT: GFSK/π/4 – DQQPSK/8DSK
  • Receiver Sensitivity: -90 dBm
  • Battery Life: > 15h
  • Antenna Gain: /
  • Power Consumption: /
  • PoE output Power: /
  • PoE Input Power: /
  • V/G Mount Battery Voltage Range: /
  • Dimensions: 114.65mm x 89.2mm x 61.8mm
  • Weight: 305g
  • Operation Temperature: -10 – 45
  • Storage Temperature: -20 – 60

LEMO Audio

  • Input Frequency Response: 150 Hz – 7 kHz
  • Maximum Input SPL: 115dB SPL
  • Noise Cancellation Depth: 20dB
  • Distortion: < 1%
  • Signal-to-noise Ratio (SNR): 67dB
  • Output SPL Level: 113dB SPL Max

Solidcom H1 BPK01 Battery Charging Base

  • Size: 440*327*92mm
  • 1 x Solidcom Hard-shell Carry Case (to fit 1 ANT01 Antenna, 1 x Charger and 10 x Beltpacks)
  • 1 x Solidcom ANT01 Antenna
  • 4 x Fibreglass Antenna
  • 10 x Solidcom BPK01 Beltpack
  • 10 x  Solidcom BPK01 Beltpack battery
  • 10 x Solidcom Single-ear Headset
  • 10 x 10-pin to 4-pin XLR Adapter Cable (for using ‘other’ headsets!)
  • 1 x Solidcom BPK01 Battery Charging Base
  • 10 x Tempered Glass Screen Protector
  • 1 x RJ45 to Dual XLR Cable
  • 1 x XLR Network Cable
  • 1 x Solidcom ANT01 Antenna POE Power Adapter
  • 1 x DC Power Adapter
  • 1 x USB Type-A to Type-C Cable
