Blackmagic Design PYXIS Monitor Kit

Name: Blackmagic Design PYXIS Monitor Kit
SKU: BMD-CINEURSABB/AMKIT
Price: 355.83
Availability: InStock

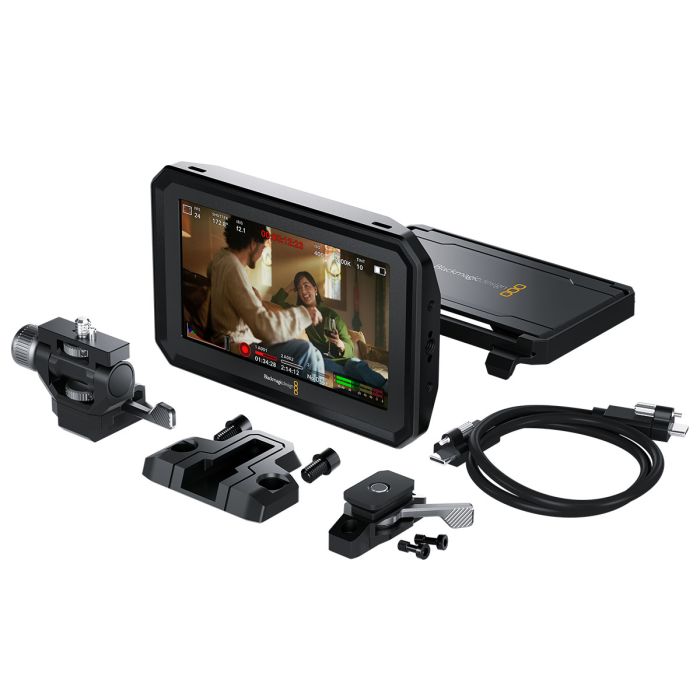

Get the PYXIS Monitor with mounts! Includes PYXIS high brightness touchscreen monitor with sunshade, custom USB-C cable with locking bolts, PYXIS Monitor Mount and the PYXIS EVF Mount.

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.

Part No:

BMD-CINEURSABB/AMKIT

2 In Stock for Immediate Delivery

£427.00 £355.83

Did you find this item priced lower than £355.83 somewhere else? Yes

Description

Add Touchscreen Monitoring with Camera Control
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides the same controls and overlays as PYXIS’ built in LCD, so it’s perfect to use when rigging or accessories block the internal display. Multiple mounting points make it easy to attach on any camera rig and use as a large viewfinder for easier focusing and framing. Or use it as an assist station so crew can frame and monitor shots from any position on set! There are 3 customizable buttons for quick access to zebra, focus assist, false color and more. Plus, the bright 1500 nit display and removable sunshade ensure visibility, even in sunlight.

Specification

More Information
Specification	Connections USB-C with Locking Connector: Video, power, data and software updates. Features Display Size: 5 inch. Display Resolution: Full 1920 x 1080. Display Type: LCD capacitive touchscreen. Display Brightness: 1500 nits. Frame Rates: Up to 60fps. Tally: Rear facing LED tally light. Accelerometer: Automatically rotates image when monitor mounted upside down. Control On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus. Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. Function Button Presets: FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value Function Button Toggle: Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still Mounting Mounting Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points. Mounting Brackets: Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit. Compatible Cameras Blackmagic PYXIS 6K Blackmagic PYXIS 6K PL Blackmagic PYXIS 6K EF Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65 Operating Systems Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11. Power Requirements Powered over USB-C. Environmental Specifications Operating Temperature: 0°to 40°C (32° to 104°F) Storage Temperature: -20°to 60°C (-4° to 140°F) Relative Humidity: 0% to 90% non-condensing Warranty Product Warranty: 1 Year Limited Manufacturer’s Warranty.
